Home / WALDMANN LIGHTING / Waldmann 113161000-00660033, MLAL 12 S, Mach LED Plus.forty Tube Light; 7.5 in., 40 degree, 24V DC

Waldmann 113161000-00660033, MLAL 12 S, Mach LED Plus.forty Tube Light; 7.5 in., 40 degree, 24V DC

data-zoom=

113161000-00660033

Brand: WALDMANN

Direct from Manufacturer: Usually Ships within 2-3 Business Days

MSRP $262.00

Price: $222.00

$222.00

39620663181485


Waldmann Part Number: 113161000-00660033

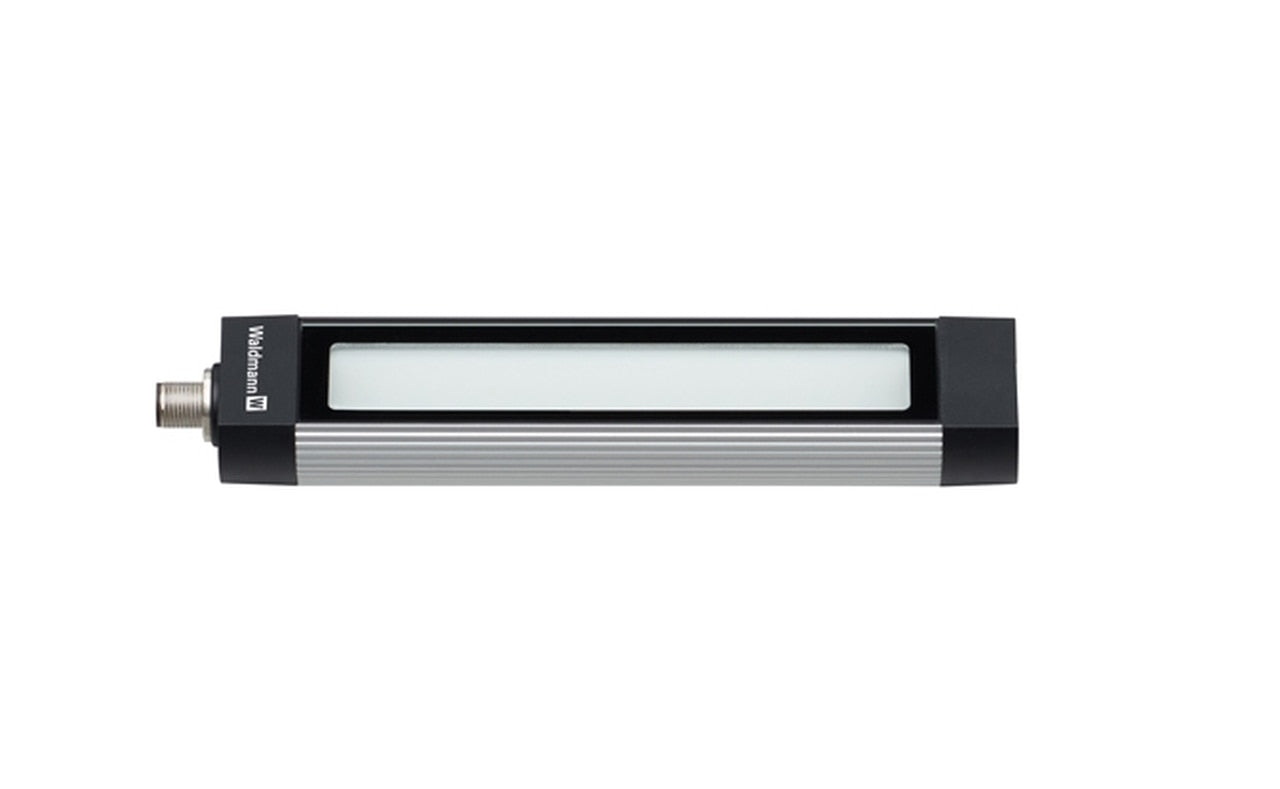

Waldmann's MACH LED PLUS.forty machine light offers bright 5000K glare-free light in a very compact form factor. MACH LED PLUS.forty is considered one of the most sustainable machine lights on the market today and with good reason - Its cutting-edge design, top quality materials, and highly efficient LED technology offer 60,000 hours of maintenance-free operation. And an M12 connector ensures fast and easy installation. MACH LED PLUS.forty has been a favorite wherever robust machine lights have been needed.

*Brackets Sold Separately, See Accessories



  • 40 Degree Beam Angle; Focused Light
  • Rugged anodized aluminum housing and 4mm thick safety glass
  • Sealed IP67 Rated - highly resistant to coolants and lubricants
  • 60,000 hours of maintenance-free LED service life

***Product image may be different than actual product.


Brand: Waldmann
Series: MACH LED PLUS.40
Model: MLAL 12S
Current AC/DC: DC
Voltage: 24
Length (in): 7.5
Width (in): 1.58
Bulb: LED
Mounting Type: Bracket
Wattage: 5
Lumens: 490
Color Temperature: 5000K
Color Rendering Index (CRI): 85
Lens Material: Glass
Lens Style: Satine
Protection Index: IP67
Operation: Without Switch
Connection: 16' Cord with free stranded wires
Certification: ETL/cETL, CE Approved
Product Warranty: 5 Years



Mounting Options:

MOUNTING OPTION: End Bracket Set, Adjustable, +/- 90º, Pair
 408001403-00671626
MOUNTING OPTION: Clip Bracket, Adjustable, +/- 20º, Each
 408001402-00671623


Power Options:

OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz
 209585029
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz
 209585030
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V,   50/60Hz
 209585032


Connection Options:

CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, straight (included with 24V models)
 US0009001
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, angled
 US0009011
CONNECTOR: M12 Connector, 4-pin, A-coded for 24V thru-wiring
 336884M10


Product Data Sheet
Product Brochure
Product Manual

Direct from Manufacturer: Usually Ships within 2-3 Business Days
