Home / Retention Knobs / Pull Studs & Accessories / Briney B329-12-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2 Thread, 15° Angle

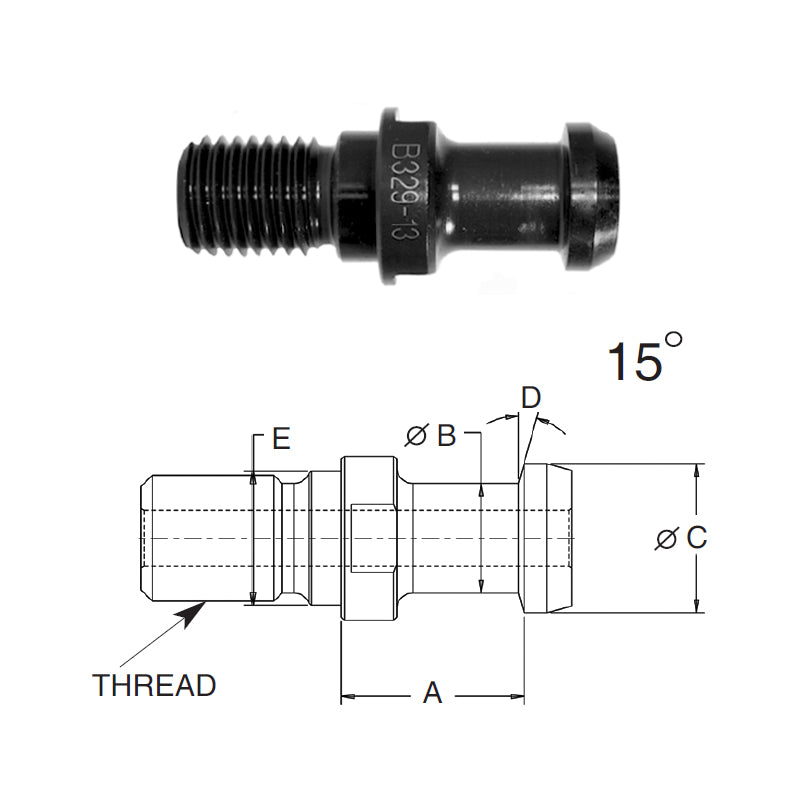

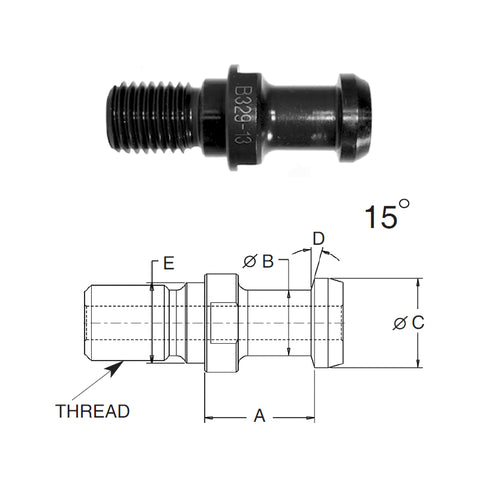

Briney B329-12-HTHS: High Torque Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2 Thread, 15° Angle
![data-zoom=](http://www.tigertoolsupply.com/cdn/shop/files/Retention-Knobs-Style-JMTBAISO-2_480x480.jpg?v=1715136135)
- Regular price
- $50.25
- Sale price
- Regular price
- Unit price
- per
MSRP $67.00
Price: $50.25
39895272685741
Briney Tooling Systems Part Number: B329-12-HTHS
Briney's Retention Knobs (Pull Studs) are made in the USA from the finest steels. Covered by a limited Lifetime Guarantee, these retention knobs will out preform all others. Please check your machine specifications carefully when ordering to ensure the proper fit and use.
- USA Made
- Precision Ground
- Laser Marked
- Limited Lifetime Guarantee
***Product image may be different than actual product.
Brand: | BRINEY TOOLING SYSTEMS |
Type: | Retention Knobs-High Torque |
Model: | 329-12 |
Knob Diameter (in): | 0.746 |
Threads: | M16x2 |
Neck Diameter (in): | 0.549 |
Angle: | 15 |
Thru-Coolant: | No |
O-Ring: | No |
Pilot Diameter (in): | 0.669 |
Distance From Under Flange to Top Of Knob: | 0.904 |
Country Of Origin: | USA |
Prop 65: | Yes |
