Home / GS TOOLING / GS TOOLING-336-771; 4.5mm ER20 SPRING COLLET, GRADE AA

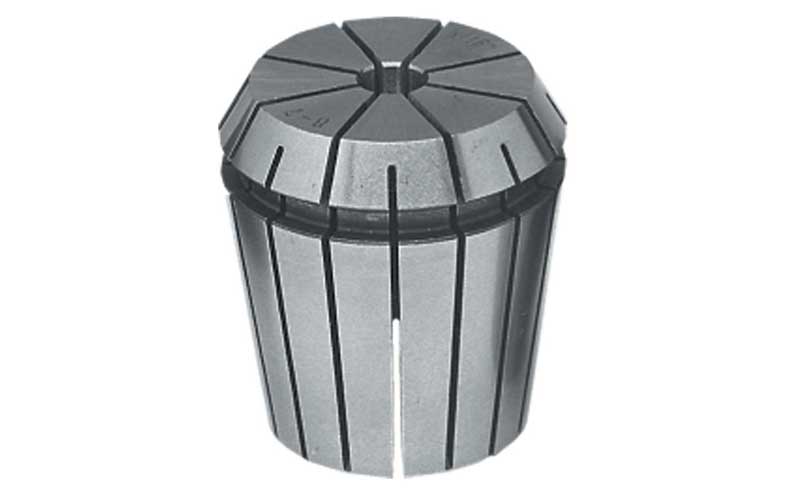

GS TOOLING-336-771; 4.5mm ER20 SPRING COLLET, GRADE AA

data-zoom=

GS-336-771

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $41.60

Price: $37.50

$37.50

39871675170989


GS TOOLING Part Number: GS-336-771
GS TOOLING ER20 SPRING COLLET is made of special elastic steel material under excellent heat treatment and precise grinding process, so it has precise accuracy, powerful clamping ability, and is durable. It can be widely used for boring, milling, drilling and tapping as well as for grinding operations.

  • Ultra Precision With Runout Of Only 5 Microns (0.005mm or 0.0002")
  • Alloy Steel
  • Approximately 1/32" Collapse With Full Accuracy
  • 16 Slits For Maximum Grip

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collets
Collet Series: ER20
Collet Size: 4.5mm
Collet Capacity Range: .157".177"
TIR: 0.05mm/0.0002"
Collet Length: 31mm
Collet Outside Diameter: 21mm
Prop 65: Yes
Country Of Origin: Import
Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst
