Home / GS TOOLING / GS TOOLING-337-535; 3/16" ER16 SPRING COLLET

GS TOOLING-337-535; 3/16" ER16 SPRING COLLET

 data-zoom=

GS-337-535

Brand: GS TOOLING

In-stock; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $24.80

Price: $22.40

Regular price
$22.40
Sale price
Regular price
Unit price
per

39871655641261


GS TOOLING Part Number: GS-337-535

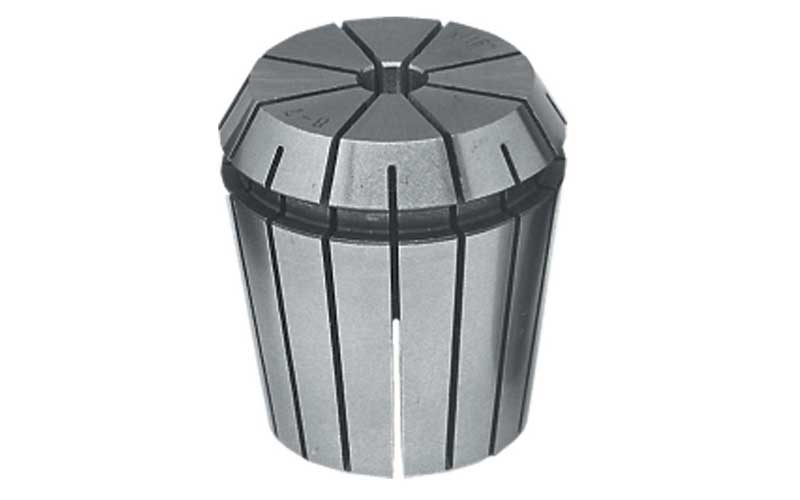

GS TOOLING ER16 SPRING COLLET is made of special elastic steel material under excellent heat treatment and precise grinding process, so it has precise accuracy, powerful clamping ability, and is durable. It can be widely used for boring, milling, drilling and tapping as well as for grinding operations.

  • Alloy Steel
  • Approximately 1/32" Collapse With Full Accuracy
  • 16 Slits For Maximum Grip
  • High Precision With Runout Of Only 10 Microns (0.01mm or 0.0004")

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collets
Collet Series: ER16
Collet Size: 3/16"
Collet Capacity Range:
TIR: 0.01mm/0.0004"
Collet Length: 27mm
Collet Outside Diameter: 17mm
Prop 65: Yes
Country Of Origin: Import
In-stock; Usually Ships Same Day If Order Is Place Before 3pm cst
