Home / Retention Knobs / Pull Studs & Accessories / GS-366-022: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2.0 Thread, 45° Angle

GS-366-022: Standard Pull Stud (Retention Knob) For V-Flange Tooling, BT40 Taper, M16x2.0 Thread, 45° Angle

data-zoom=

GS-366-022

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $31.10

Price: $28.00

$28.00

39895232250029


GS Tooling Part Number: GS-366-022
GS Tooling retention knobs (Pull Studs) offer great value. Made of high quality steel, these retention knobs are used in most applications. Please check your machine specifications carefully when ordering to ensure the proper fit and use.

  • Precision Ground
  • Numbers Etched
  • Made to industry standards
  • Made In Taiwan

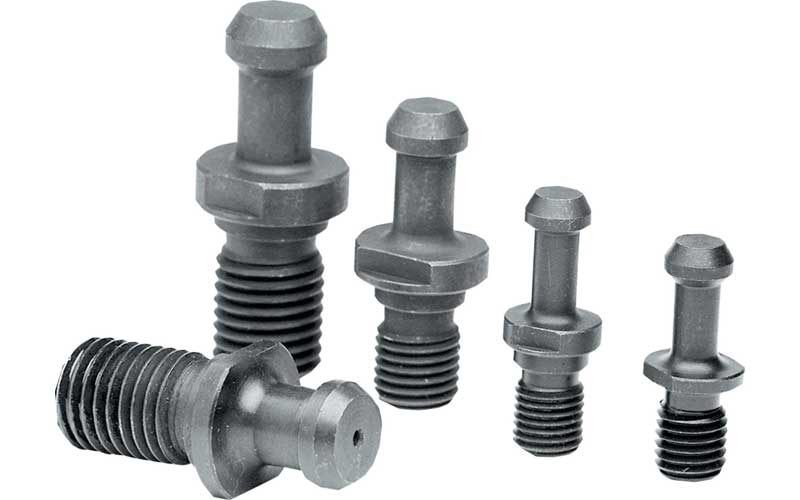

***Product image may be different than actual product.


Brand: GS TOOLING
Type: Retention Knobs-Standard
Model: 312-25
Knob Diameter (in): 0.74
Threads: M16X2.0
Neck Diameter (in): 0.49
Angle: 45
Thru-Coolant: Yes
O-Ring: No
Pilot Diameter (in):
Distance From Under Flange to Top Of Knob: 0.552
Country Of Origin: TAIWAN
Prop 65: Yes
