Home / GS TOOLING / GS-531-000: 1/4 in. CAT40 End Mill Holder, with 1.38 in. Projection

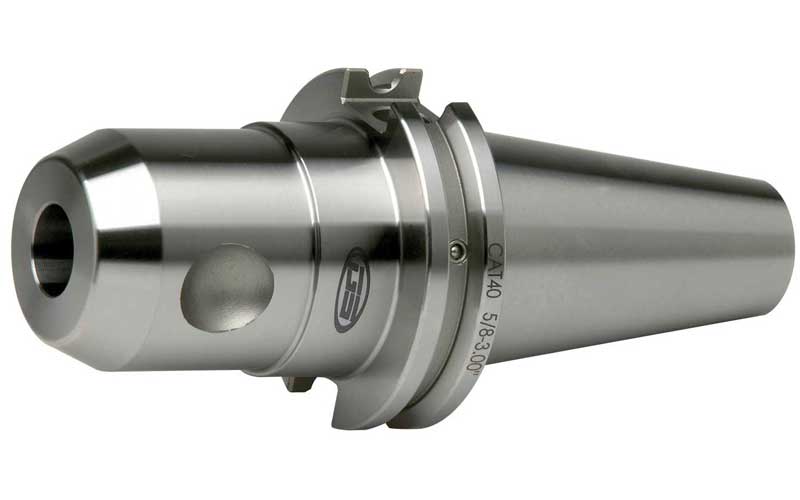

GS-531-000: 1/4 in. CAT40 End Mill Holder, with 1.38 in. Projection

data-zoom=

GS-531-000

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $108.09

Price: $97.30

$97.30

39871782322349


GS Tooling Part Number: GS-531-000
GS Tooling End Mill Holders are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These End Mill Holders feature two coolant options built into the holder; through the flange and through the body. They also have a maximum TIR 0.00002" from OD to ID and include a certificate of inspection.

  • 100% Forged Construction
  • Certified balanced to 30,000 rpm
  • Precision Ground Throughout
  • DIN Coolant thru the flange

***Product image may be different than actual product.


Brand: GS TOOLING
Type: End Mill Holder
Model: 531000
Taper: CAT40
Size: 1/4
Projection (in): 1.38
Thru Coolant: DIN Coolant Thru the Flange
Head Diameter (in): 0.79
Balanced To: 30000 RPM
Prop 65: Yes
Country Of Origin: TAIWAN
Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst
