Home / GS TOOLING / GS-531-073: 3/16 in. CAT40 End Mill Holder, with 2.5 in. Projection
GS-531-073: 3/16 in. CAT40 End Mill Holder, with 2.5 in. Projection
![data-zoom=](http://www.tigertoolsupply.com/cdn/shop/files/531000_407f5028-f0fd-4cde-aee4-e7a662a83fab_480x480.jpg?v=1715137041)
- Regular price
- $94.50
- Sale price
- Regular price
- Unit price
- per
MSRP $104.94
Price: $94.50
39871781404845
GS Tooling Part Number: GS-531-073
GS Tooling End Mill Holders are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These End Mill Holders feature two coolant options built into the holder; through the flange and through the body. They also have a maximum TIR 0.00002" from OD to ID and include a certificate of inspection.
- 100% Forged Construction
- Certified balanced to 30,000 rpm
- Precision Ground Throughout
- DIN Coolant thru the flange

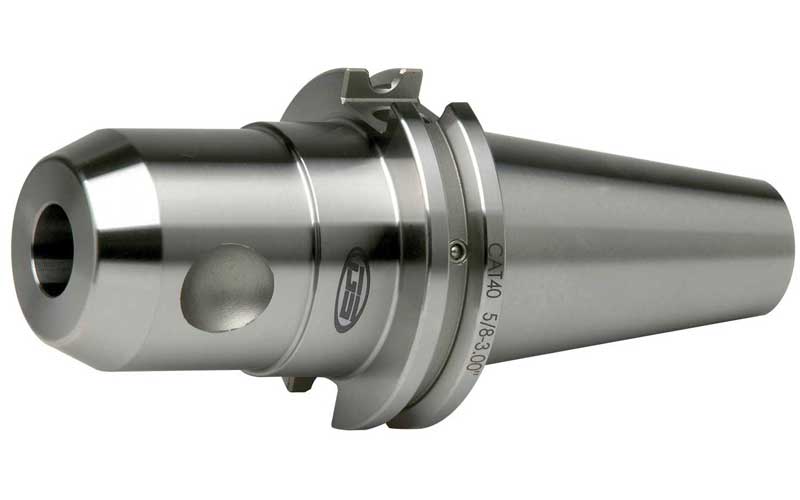

***Product image may be different than actual product.
Brand: | GS TOOLING |
Type: | End Mill Holder |
Model: | 531073 |
Taper: | CAT40 |
Size: | 3/16 |
Projection (in): | 2.5 |
Thru Coolant: | DIN Coolant Thru the Flange |
Head Diameter (in): | 0.75 |
Balanced To: | 30000 RPM |
Prop 65: | Yes |
Country Of Origin: | TAIWAN |
