Home / GS TOOLING / GS-531-144: 3/4 in. CAT50 End Mill Holder, with 8 in. Projection

GS-531-144: 3/4 in. CAT50 End Mill Holder, with 8 in. Projection

data-zoom=

GS-531-144

Brand: GS TOOLING

Ships from Manufacturer; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $218.22

Price: $196.40

$196.40

39871803097261


GS Tooling Part Number: GS-531-144
GS Tooling End Mill Holders are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These End Mill Holders feature two coolant options built into the holder; through the flange and through the body. They also have a maximum TIR 0.00002" from OD to ID and include a certificate of inspection.

  • 100% Forged Construction
  • Certified balanced to 30,000 rpm
  • Precision Ground Throughout
  • DIN Coolant thru the flange

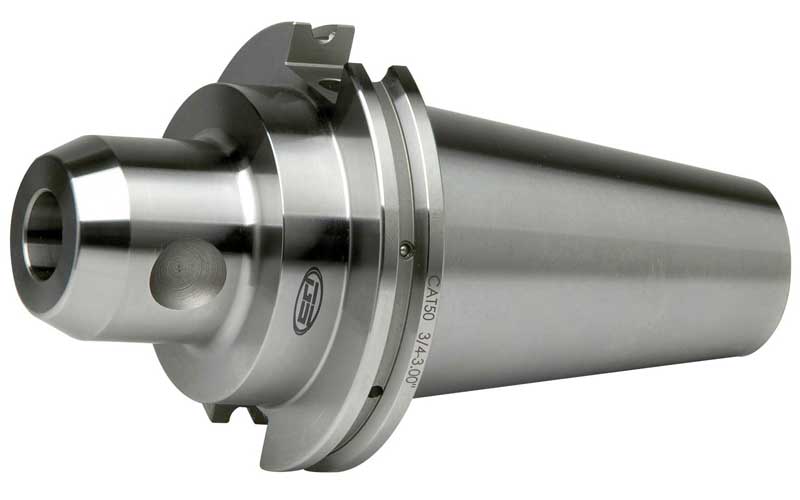

***Product image may be different than actual product.


Brand: GS TOOLING
Type: End Mill Holder
Model: 531144
Taper: CAT50
Size: 3/4
Projection (in): 8
Thru Coolant: DIN Coolant Thru the Flange
Head Diameter (in): 1.89
Balanced To: 30000 RPM
Prop 65: Yes
Country Of Origin: TAIWAN
