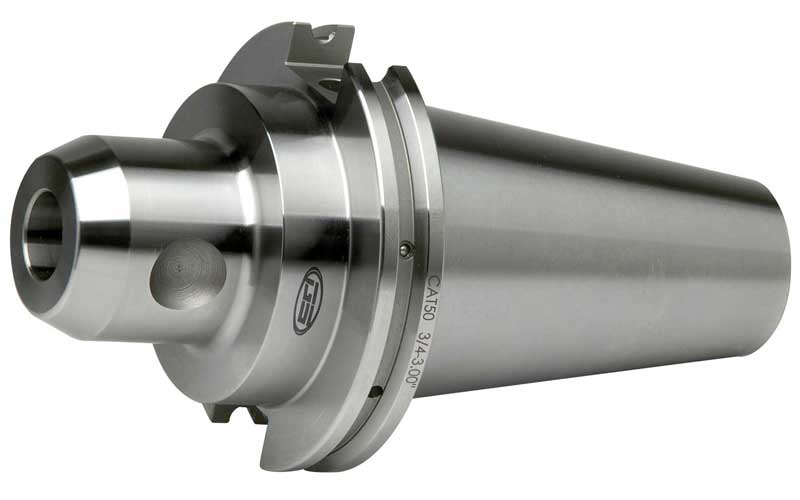

GS-531-145: 3/4 in. CAT50 End Mill Holder, with 14 in. Projection
![data-zoom=](http://www.tigertoolsupply.com/cdn/shop/files/531082_9507dc77-643b-4ae2-a5db-08096c4071c5_480x480.jpg?v=1715136748)
- Regular price
- $601.20
- Sale price
- Regular price
- Unit price
- per
MSRP $667.90
Price: $601.20
39871803162797
GS Tooling Part Number: GS-531-145
GS Tooling End Mill Holders are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These End Mill Holders feature two coolant options built into the holder; through the flange and through the body. They also have a maximum TIR 0.00002" from OD to ID and include a certificate of inspection.
- 100% Forged Construction
- Certified balanced to 30,000 rpm
- Precision Ground Throughout
- DIN Coolant thru the flange
***Product image may be different than actual product.
Brand: | GS TOOLING |
Type: | End Mill Holder |
Model: | 531145 |
Taper: | CAT50 |
Size: | 3/4 |
Projection (in): | 14 |
Thru Coolant: | DIN Coolant Thru the Flange |
Head Diameter (in): | 1.89 |
Balanced To: | 30000 RPM |
Prop 65: | Yes |
Country Of Origin: | TAIWAN |
