Home / GS TOOLING / GS-531-146: 7/8 in. CAT50 End Mill Holder, with 1.75 in. Projection

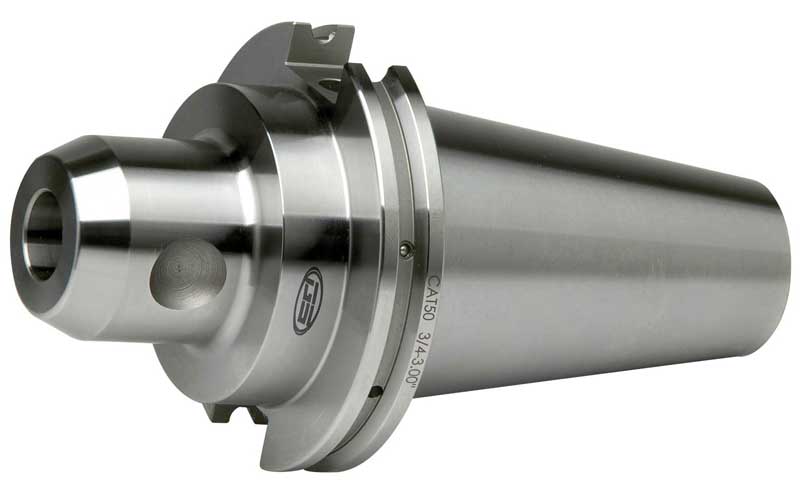

GS-531-146: 7/8 in. CAT50 End Mill Holder, with 1.75 in. Projection
![data-zoom=](http://www.tigertoolsupply.com/cdn/shop/files/531082_5141b8d9-8e5d-43fc-8390-1f7b11ec94a4_480x480.jpg?v=1715136751)
- Regular price
- $148.70
- Sale price
- Regular price
- Unit price
- per
MSRP $165.19
Price: $148.70
39871803228333
GS Tooling Part Number: GS-531-146
GS Tooling End Mill Holders are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These End Mill Holders feature two coolant options built into the holder; through the flange and through the body. They also have a maximum TIR 0.00002" from OD to ID and include a certificate of inspection.
- 100% Forged Construction
- Certified balanced to 30,000 rpm
- Precision Ground Throughout
- DIN Coolant thru the flange
***Product image may be different than actual product.
Brand: | GS TOOLING |
Type: | End Mill Holder |
Model: | 531146 |
Taper: | CAT50 |
Size: | 7/8 |
Projection (in): | 1.75 |
Thru Coolant: | DIN Coolant Thru the Flange |
Head Diameter (in): | 2 |
Balanced To: | 30000 RPM |
Prop 65: | Yes |
Country Of Origin: | TAIWAN |
