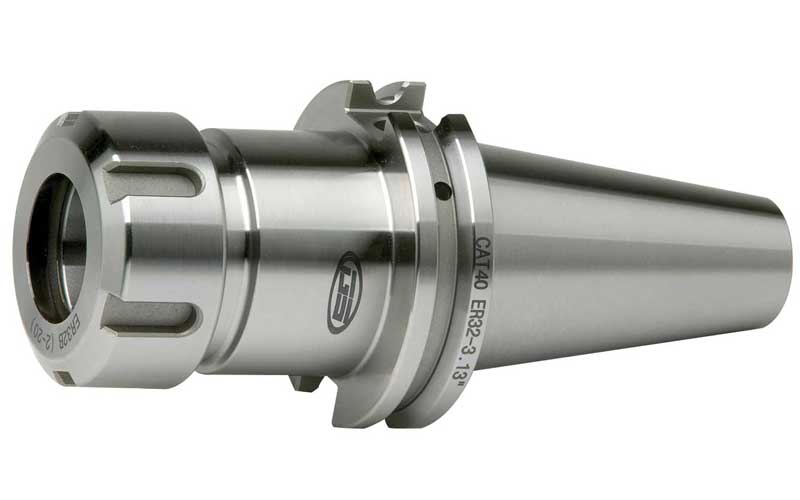

GS-531-421: ER32 CAT40 Collet Chuck, with 2.5 in. Projection

data-zoom=

GS-531-421

Brand: GS TOOLING

In-stock; Usually Ships Same Day If Order Is Place Before 3pm cst

MSRP $195.03

Price: $175.60

$175.60

39871803818157


GS Tooling Part Number: GS-531-421
GS Tooling Collet Chucks are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These Collet Chucks feature two coolant options built into the holder; through the flange and through the body. This holder is threaded for a back-up screw (tool stop) or coolant through when removed. They also have a maximum TIR 0.0003" at 4xDiameter. Wrench is not included.

  • 100% Forged Construction
  • Certified balanced to 30,000 rpm
  • Precision Ground Throughout
  • DIN Coolant thru the flange

***Product image may be different than actual product.


Brand: GS TOOLING
Type: ER Collet Chucks
Model: 531421
Taper: CAT40
Size: ER32
Collet Range: .078" - .787"
Projection (in): 2.5
Thru Coolant: DIN Coolant Thru the Flange
Head Diameter (in): 1.97
Balanced To: 30000 RPM
Prop 65: Yes
Country Of Origin: TAIWAN
