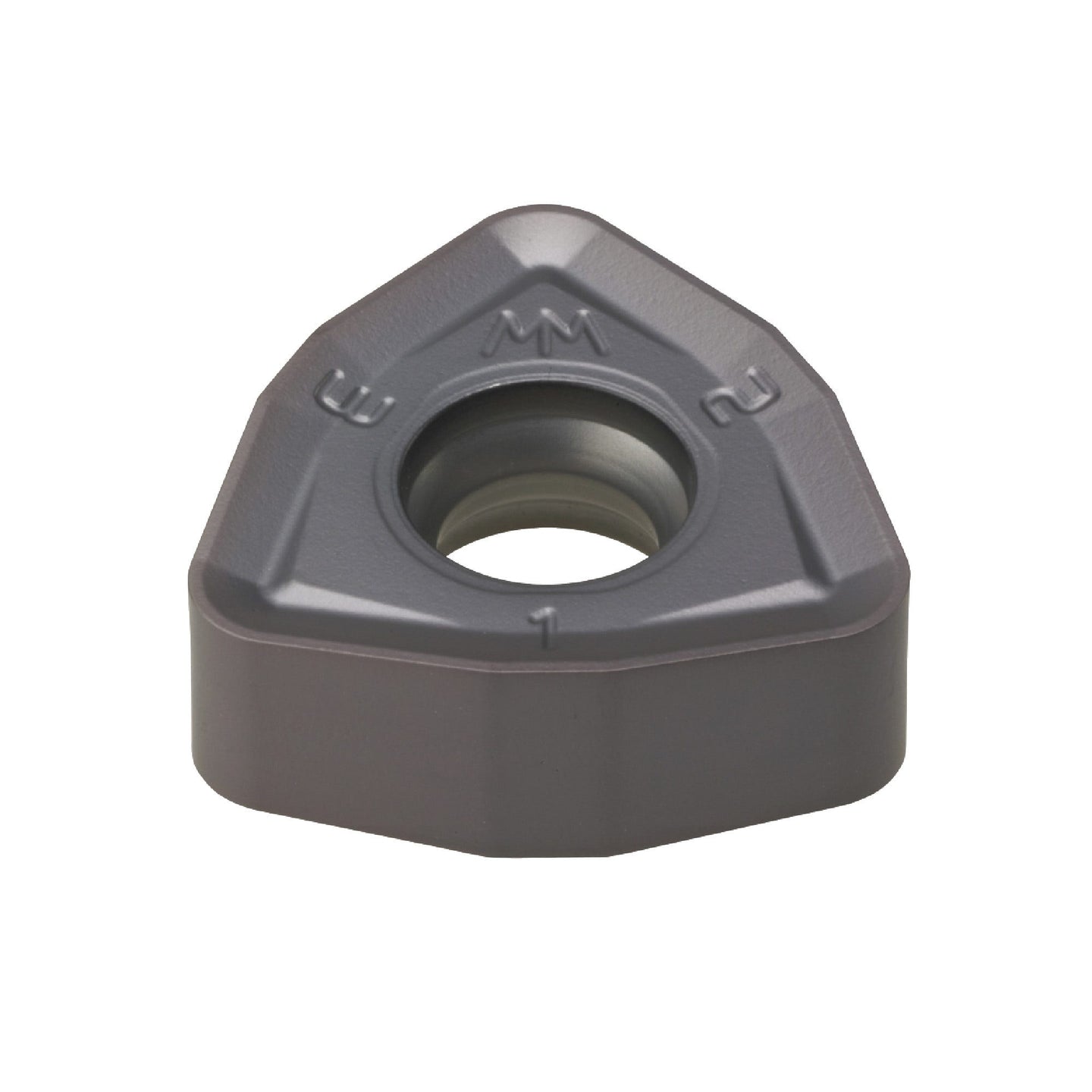

KORLOY-1-02-044890: WNMX160720ZNN-MM PC5300, Trigon Milling Insert, 10-Pack

data-zoom=

KORL-1-02-044890

Brand: KORLOY

Ships From Mfr: Stocked In US

MSRP $383.40

Price: $291.38

$291.38

40806136807597


KORLOY Part Number: 1-02-044890
Korloy's Milling Inserts are a great blend of value and quality. Respected as a top brand, Korloy is a go to for many machinists. Korloy produces thousands of inserts each month for shipment all of over the world. Be confident that Korloy will work for you.
Korloy's PC5300 grade is a PVC coated carbide. This grade is a superior univeral grade for steel, cast iron, stainless steel and hard to cut materials. The ultra fine grain provide wear resistance and oxidation resistance. (ISO P30-P40, K20-K30, M20-M30, S15-S25)
Korloy's MM chipbreaker is for general machining. The geometry is designed to provide a wide range of machining.

  • Sold in package of 10 pieces
  • Coating: PVD / TiAlN
  • Tool Material: Carbide
  • Used For: Cast Iron, Stainless Steels, Steel, Exotics

***Product image may be different than actual product.


Brand: KORLOY
Type: Milling Insert
Insert Style: WNMX
Insert Shape: Trigon
Korloy Holder Series: HRMD
Insert ISO: WNMX160720ZNN-MM PC5300
Insert Size: 160720
Relief Angle: 0 deg.
Insert IC: 0.630 in.
Insert Radius: 0.079 in.
Insert Thickness: 5/16 in.
Chipbreaker: MM
Insert Grade: PC5300
Coating: PVD / TiAlN
Maximum Depth of Cut: 0.098 in.
Tool Material: Carbide
Application Material Used For:: Cast Iron, Stainless Steels, Steel, Exotics
Prop 65: Yes
Country Of Origin: IMPORT
Weight: 0.005 lbs.
Ships From Mfr: Stocked In US
